Reacton has received the world's first UL Listing to UL 2166 for Direct (DLP) Technology Clean Agent systems to protect your sensitive electronics in the most economical way possible. Utilising trusted extinguishing mediums such as 3M™ Novec™ 1230 Fire Protection Fluid.

Novec™ 1230 Fire Protection Fluid

Manufactured by 3M™

3M™ Novec™ 1230 is a fluorinated ketone that is stored as a liquid and discharged as a gas. It is electrically non-conductive and leaves no residue after discharge. It distributes uniformly throughout the hazard zone and suppresses fire primarily by heat absorption from the flame.

With a zero-ozone depletion potential (ODP), a global warming potential (GWP) of just one, and an atmospheric lifetime (ALT) of only five days, Novec™ 1230 fluid offers an environmentally responsible option for fire suppression.

3M™ Novec™ 1230 has been thoroughly evaluated and approved for use in occupied areas as specified by the Environment Protection Agency (EPA) & Significant New Alternative Program (SNAP).

1 3M-Novec-Logo-BR

FM-200™

Manufactured by Chemours™

FM-200™, sometimes referred to as HFC-227ea, is the most tested liquefiable clean agent of all time. It is an electrically non-conductive odourless and colourless gas. FM-200™ offers minimal downtime due to no clean-up post-discharge. It is stored as a liquid and introduced into the protected hazard as a clear colourless vapour. FM-200™ leaves no residue and is suitable for occupied spaces. FM-200™ has zero Ozone Depletion Potential.

2 FM-200-Logo-BR

Direct Release Clean Agent Systems

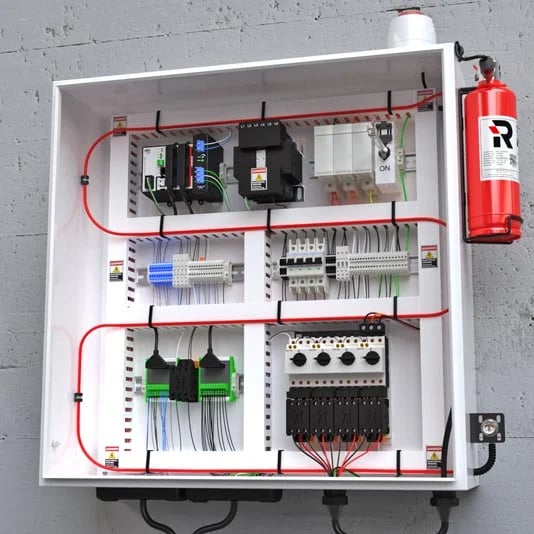

This technology utilises the Reacton® tubing to automatically detect the fire and actuate the system. The tubing is installed in and around the fire risk areas within the protected area, the tubing is pressurised and in communication with the system contents. When a fire occurs, the tubing will burst at the point of highest heat. As the contents of the systems are directly in communication with the detection tube, immediate discharge of the extinguishing agent is started at the point of detection.

01-Reacton-Direct-Release-System-Electrical-Cabinet-02
electrical-panel-brochure-download
Direct Release Clean Agent System Brochure
Download your copy
Download
reacton-logo-icon-white-full

What are the benefits of a Direct Release Clean Agent System?

Protect Any Cabinet

Designed to be flexible our range of on electrical equipment fire suppression systems can be fitted to any cabinet or enclosure, without compromising on protection.

Easy To Install

With a modular design & world class training, Reacton ensure that it is simple for systems to be installed in on cabinets and enclosures that have limited room.

3 Year Warranty

Reacton electrical equipment systems carry a robust three year warranty that's only possible because of the robust engineering and quality that goes into every product.

Easy Adaptable

Reacton system can be integrated with any safety alarm or monitoring systems and can be adapted to any requirements of the customer.

No Electrical Power

With no reliance on electrical power or any interfacing the systems are always ready to detect and operate regardless of electricity supply condition.

BSI ISO9001:2015

Our quality management system audited by BSI ensures our products and procedures are amongst the best in the world.

Quality Components

We will never reduce our hard fought reputation for high standards. All our components are manufactured and checked with ruthless scrutiny.

Rugged Design

Tested with almost all functional components constructed from stainless steel, vibration tested to ISO.

CE & DOT

As a global business we ensure our products are compliant where ever they may be fitted. Cylinders are available in both CE & DOT specification.

Our Direct systems work in the following way:

  1. The radiant heat of a fire bursts the pressurised detection tube.
  2. Clean Agent is then delivered through the point of detection extinguishing the fire.
  3. Additional devices such as pressure switches are activated to alert building management fire alarms and ultimately alert people that a fire has been detected.

Reacton systems are designed to meet the most robust and demanding certification standards around the world. Our automatic fire suppression systems are independent of a power source which ensures detection and suppression in any condition.

Our systems are all manufactured and designed under our BSI ISO9001:2015 quality policy and are CE & DOT Compliant.



Why Clean Agents?

Reacton were the world's first company to achieve UL Listing to UL 2166 for Direct (DLP) Technology for CE and DOT variants in our Clean Agent Automatic Fire Suppression Systems.

Halocarbon Clean Agent range consists of 3M™ Novec™ 1230 Fire Protection Fluid and FM-200™ waterless fire suppressant from Chemours™. These Clean Agents are the most trusted and tested liquefiable gases on the market with all supply being solely through the biggest names in the industry when it comes to Clean Agents.

Reacton Clean Agent extinguishing mediums all have the following approvals:

  • Underwriters Laboratories (UL)
  • Underwriters Laboratories of Canada (ULC)
  • Factory Mutual (FM)
  • Significant New Alternatives Policy (SNAP) listed through the United States Environment Protection Agency (U.S. EPA)

All products are recognised and listed in standards such as ISO 14520 and NFPA 2001. Reacton were the world's first company to achieve UL Listing to UL 2166 for Direct (DLP) Technology for CE and DOT variants in our Clean Agent Automatic Fire Suppression Systems.



Our High Performance Systems

Reacton have innovated their Direct technology to deliver the Clean Agent in a unique way in order to provide superior fire fighting performance.

  • Stainless Steel alloy 303 (UNS S30300)
  • High Flow Discharge
  • Options for CE & DOT markets
  • Accessible pressure monitoring capabilities
